Yixing Dingfan New Energy Technology Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Dingfan |
| Minimum Order Quantity: | 500 kg |
| Price: | Negotiate |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 tons per year |
| Brand: | 1J50 | Saturation Magnetic Induction Intensity Bs（T）: | 1.5 |
|---|---|---|---|
| Application Field: | Machine Components, Etc | Place Of Origin: | China |
| Main Features: | Magnetic Induction | Ni: | Max50.5 |
| Highlight: | Dingfan Iron Nickel Alloy Strip,Iron Nickel Alloy Strip High Magnetic |
||
1J50 Iron - Nickel Alloy Strip Permalloy Strip With High Magnetic Permeability
Product Description
Permalloy refers to an iron-nickel alloy, also known as a soft magnetic alloy. Its nickel content ranges from 35% to 90%. The biggest feature of permalloy is its high weak magnetic field permeability. Their saturation magnetic induction is generally between 0.6--1.0T.
The alloy is smelted in a vacuum induction furnace, and is made into cold-rolled strip, cold-drawn wire or hot-rolled (forged) sheet and bar through hot-cold plastic deformation.
Used to make audio transformers, transformers, magnetic amplifiers, magnetic modulators, chokes, audio heads, etc.
My country's permalloy grade is 1JXX. Among them, J means "precision alloy", "1" means soft magnetism, and the number on the back permalloy surface is the serial number, which usually indicates the nickel content in the alloy. For example 1J50, 1J851 and so on. Permalloy has high magnetic permeability, so it is often used in the iron core of medium and high frequency transformers or devices with strict requirements on sensitivity, such as high frequency (tens of KHz) switching power supply transformers, precision transformers, leakage switch transformers, Magnetic shield, yoke, etc.
1J50
Similar to the brand
| GB/T | JIS |
| 1J50 | PB |
Chemical composition
| Brand | % | Ni | Fe | C | Mn | Si | P | S | Cu |
| 1J50 | Min | 49.5 | - | 0.30 | 0.15 | ||||
| Max | 50.5 | 0.03 | 0.60 | 0.30 | 0.020 | 0.020 | 0,20 | ||
Mechanical properties of alloys at room temperature
| Brand | Varieties | magnetic | |||
|
Initial permeability μO(mH/m) |
Maximum permeability μm(mH/m) |
Coercive force Hc (A/m) |
Saturation magnetic induction intensity Bs(T) |
||
| 1J50 | cold-rolled belt | ≥3.8 | ≥62.5 | ≤9.6 | 1.5 |
|
Forged (rolled) rod and plate |
≥3.1 | ≥31.3 | ≤14.4 | 1.5 | |
Average linear expansion coefficient of alloy
| Brand | Average linear expansion coefficient(10一6℃) | |||||
| 20～100℃ | 20～200℃ | 20～300℃ | 20～400℃ | 20～500℃ | 20～600℃ | |
| 1J50 | 8.9 | 9.27 | 9.2 | 9.2 | 9.4 | —— |
The main features
It has rectangular hysteresis loop and high saturation magnetic induction intensity.
Application field
It is mainly used for magnetic amplifiers, choke coils, rectifier coils, and computer device components working in medium magnetic fields.

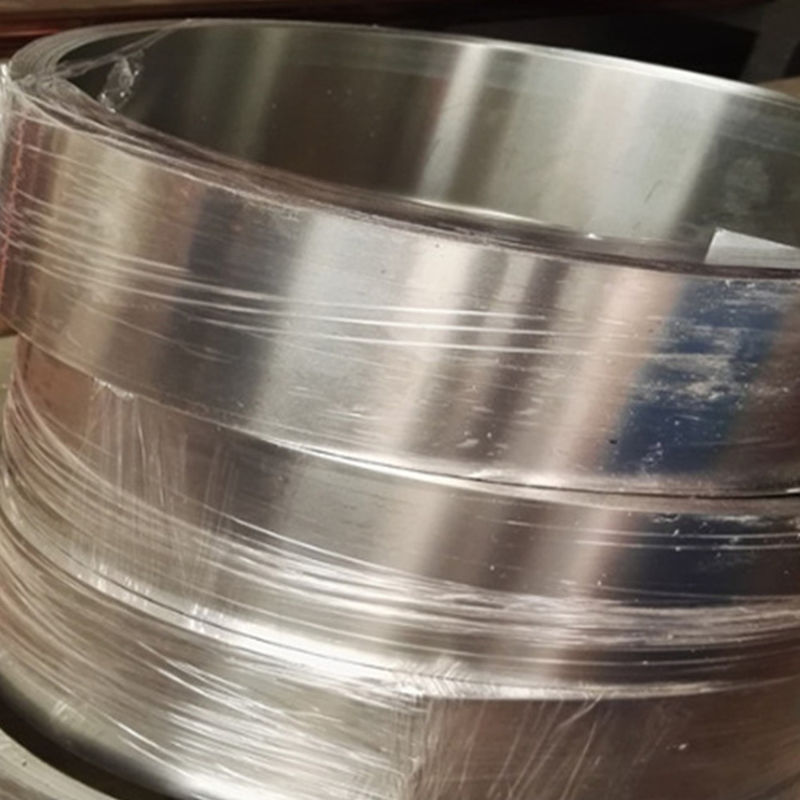

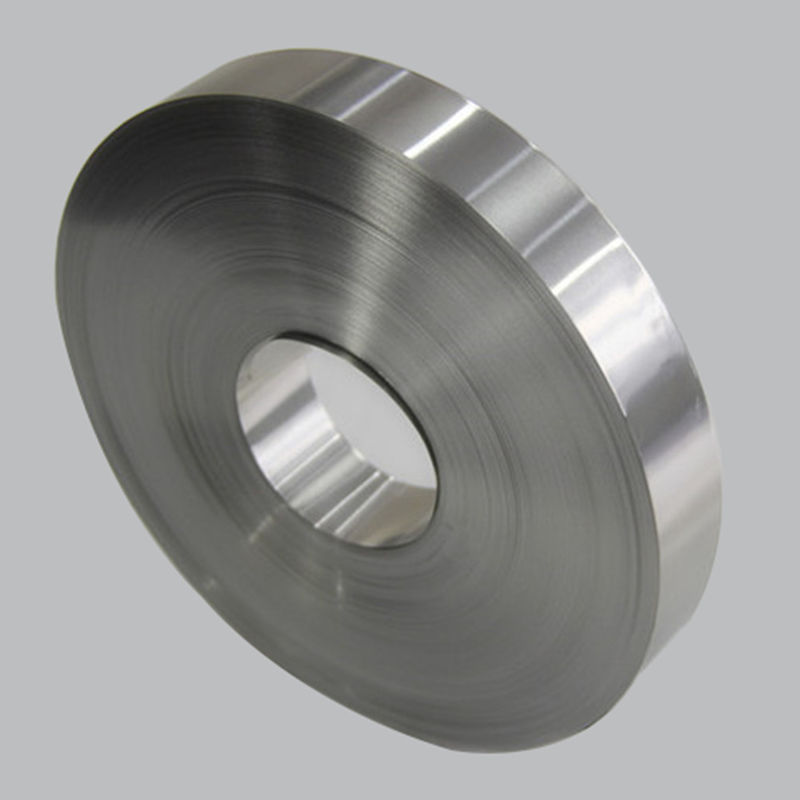

Product display
Shipping packaging
FAQ
1.Are you trading or manufacturer ?
We are company,and we have our own factory
2.How long is your delivery time?
| Quantity(kilograms) | 1 - 500 | >500 |
| Est. Time(days) | 10 | To be negotiated |
3.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you have another question, pls feel free to contact us
