Yixing Dingfan New Energy Technology Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Dingfan |
| Minimum Order Quantity: | 300 kg |
| Price: | Negotiate |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 tons per year |
| Name: | Sn63Pb37 Preformed Solder | Melting Point/℃ Solid/liquid Phase: | 183 |
|---|---|---|---|
| Density G/cm³: | 8.40 | Resistivity µΩ·m: | 0.146 |
| Thermal Conductivity W/m·K: | 25 | Thermal Expansion Coefficient 10-6/℃: | 52 |
| Highlight: | Sn63Pb37 Preformed Solder,Preformed Solder Corrosion Resistance |
||

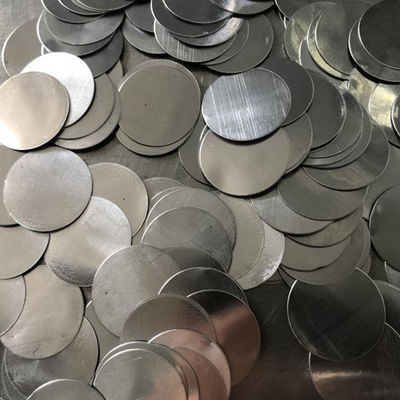

Sn63Pb37 Prefabricated Solder Is Used For Corrosion Resistance In Civil Electronic Products
Product Description
Features:
Product Name: Sn63Pb37 Prefabricated Solder
- Eutectic solder, melting point 183°C
- good mechanical properties
- Good electrical and thermal conductivity
- High reliability and corrosion resistance of solder joints
- Good solderability, better than lead-free solder
- Good appearance of solder joints for easy inspection
Sn63Pb37 is a tin-lead eutectic solder with a eutectic point of 183°C. Tin-lead solder has always been the main soldering material for electronic assembly, especially the Sn63Pb37 solder alloy with eutectic composition because of its low melting point (183°C), good soldering properties (good wetting and spreading, low surface tension) etc.) and performance have become the main welding material for electronic assemblies, and are widely used in the assembly of military, aerospace and civil electronic products.
With the increasing attention to the environment, lead-free solders are gradually replacing lead-containing solders due to the toxicity of Pb, but the wetting properties of lead-free solders developed so far have always been inferior to tin-lead solders.
Solder Composition
| Element | Wt% |
| 铅(Pb) | margin |
| 锡(Sn) | 63±0.5 |
Physical Properties
| product name | Melting point/℃ solid/liquid phase |
density g/cm³ |
Resistivity µΩ·m |
Thermal conductivity W/m·K |
Thermal expansion coefficient 10-6/℃ |
tensile strength Mpa |
| Sn63Pb37 | 183 | 8.40 | 0.146 | 51 | 25 | 52 |
Operation details:
- Solder pick up:
Use an anti-static jig to pick up the solder to prevent solder contamination and deformation.
- Flux Compatibility:
Sn63Pb37 solder is compatible with the major no-clean and water-soluble electronic grade fluxes currently on the market.
Processing size
| thickness(t) | Typical tolerances for length, width or diameter (L/W/D) | |
| t<0.40mm | ±0.02mm | |
| 0.40mm≤ t <1.00mm | ±0.03mm | |
| t ≥1.00mm | ±0.05mm | |
| thickness(t) | Thickness Typical Tolerance | |
| conventional solder alloys | Indium alloy | |
| t<0.05mm | ±0.005mm | ±0.01mm |
| 0.05mm≤ t <0.10mm | ±0.008mm | ±0.01mm |
| 0.10mm≤ t <0.20mm | ±0.01mm | |
| 0.20mm≤ t <0.40mm | ±0.02mm | |
| 0.40mm≤ t <1.00mm | ±0.03mm | |
| t ≥1.00mm | ±5% | |
Storage and Product Management
-store
The best storage temperature of this product is 25±5℃, and the relative humidity is less than or equal to 55%RH.
-Product management
Keep container tightly closed when product is not in use.
Safety
- Please use this product with adequate ventilation and certain personal protection conditions.
- Please do not mix with other toxic chemicals.
Packaging and Shipping
Packing Details : Carton and wooden box packaging
Delivery Details : 5-10 days(Negotiated and decided on a case-by-case basis)
FAQ
1.Are you trading or manufacturer ?
We are company,and we have our own factory
2.How long is your delivery time?
| Quantity(kilograms) | 1 - 500 | >500 |
| Est. Time(days) | 10 | To be negotiated |
3.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you have another question, pls feel free to contact us
Our advantage
1. Perfect management system: We operate strictly in accordance with the quality management system.
2. Professional sales and after-sales service team: We have a number of sales specialists, 24 hours a day online service, can quickly solve customer questions and after-sales.
3. Reliable quality: from the procurement of raw materials, to the process inspection of product production and finished product inspection, to the inspection of packaging, all are strictly controlled, with a number of advanced testing equipment and instruments, such as temperature rise tester, conductivity tester , tensile testing machine, etc.
4. Timely delivery: We have many years of production experience, strictly control the cost of each process, have multiple automated production equipment, and have a stable production chain.
5. Intelligent workshop: It has intelligent mechanical operators and multiple precision operation platforms.
