Yixing Dingfan New Energy Technology Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Dingfan |
| Model Number: | 4NC |
| Minimum Order Quantity: | 500 kg |
| Price: | Negotiate |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 tons per year |
| Nickel Plating Thickness: | 1um±0.5um | Chamfering (Edge Treatment): | 20W~100W(mm) Can Be Chamfered |
|---|---|---|---|
| Supply Shape: | Roll, Sheet, Special-shaped Punching | Surface Treatment: | According To Customer Requirements. |
| 180° Bending: | ≥ 7 Times | Electroplating Form: | Two Or Four Sides |
| Material Purity: | Cu+Ag ≥99.9% | Plating Thickness (single Side)um: | 1.5 , 2 , 3 |
| Highlight: | Dingfan Nickel Plated Copper Strip,Nickel Plated Copper Strip Anti Electromagnetic |
||
Nickel-Plated Copper Strip With Continuous Nickel Plating
Product Description
Material composition:
Copper: ■T2(C1100)
| Alloy elements | Cu+Ag | Bi | Sb | As | Fe | Pb | S | … | … |
| Copper/T2 | 99.98 | 0.001 | 0.002 | 0.002 | 0.001 | 0.005 | 0.005 |
| Material grade | T2 | ||
| Material purity | Cu+Ag ≥99.9% | ||
| Physical properties | Conductivity ≥100% | Tensile strength 200-260MPa | Elongation rate≥42% |
| Plating thickness (single side)um | 1.5 , 2 , 3 | ||
| Product specification(mm) | Thickness 0.08-0.4 Tolerance ±0.01 | Width 1.5- 200 Tolerance ± 0.1 | |
| Availability | M state HV≤60 | ||
| Supply shape | Roll, sheet, special-shaped punching | ||
| 180°bending | ≥ 7次 | ||
| Electroplating form | Two or four sides | ||
| Performance | Has good surface color, electrical conductivity, plasticity, ductility, corrosion resistance and weldability. Soldering, ultrasonic welding and spot welding are available. | ||
| Purpose | It is used in electronic connectors, precision electronic plug-ins, power battery connecting pieces, tab negative poles, switch contactors, and the connection between lithium battery positive poles and PCB boards. | ||
Other physical properties
The resistivity: (Ωm㎡/m) ≦0.024
Elongation: (%) 15～30
Tensile strength: (MPa) 150-170
Peel strength: (N/mm) ＞12
Surface hardness: (HV 0.3) 76/37

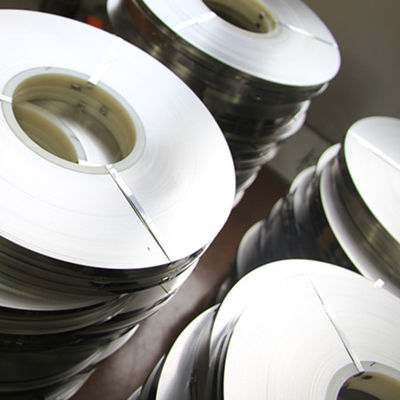

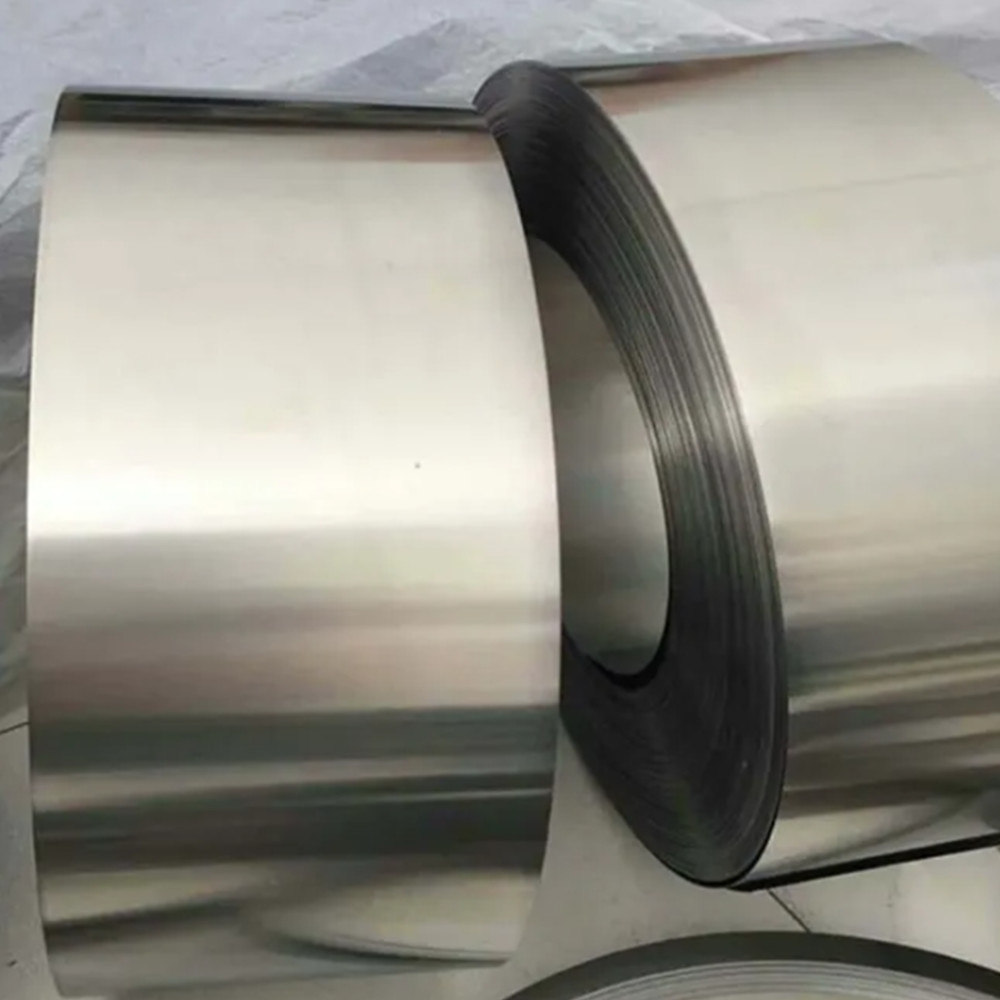

Product display
Surface Quality
(1) The surface of the strip should be smooth and clean, and there should be no wind layer, cracks, bubbles, thorns, and inclusions;
(2) Slight local defects such as scratches, spots, pits, indentations and roll marks are allowed, and the thickness of the unused strip exceeds the allowable deviation. Slight oxidation color, darkening and slight local oil marks are not allowed Scrap basis;
(3) Both sides of the strip should be cut evenly without burrs, cracks and curling.
(4) The strip should be straight, but slight waves are allowed; the curvature of the side of the strip is greater than 3 mm per meter of cloth.
Advantages:
1, good welding function
2, anti-electromagnetic interference
3, cheap price
4, with high chemical volatility, in sulfuric acid, nitric acid, hydrochloric acid dilute solution simply insoluble.
Package
-Product packaging: Spool, plastic seal, and aluminum-plastic film seal packaging
- Outer packaging size: paper (L410mm*W410mm*H95mm)
- Product packaging inner diameter: 100mm and 200mm, or other inner diameters are optional.
FAQ
1.Are you trading or manufacturer ?
We are company,and we have our own factory
2.How long is your delivery time?
| Quantity(kilograms) | 1 - 500 | >500 |
| Est. Time(days) | 10 | To be negotiated |
3.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you have another question, pls feel free to contact us
