Yixing Dingfan New Energy Technology Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | Dingfan |
| Model Number: | 4NC |
| Minimum Order Quantity: | 500 kg |
| Price: | Negotiate |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 tons per year |
| Nickel Plating Thickness: | 1um±0.5um | Chamfering (Edge Treatment): | 20W~100W(mm) Can Be Chamfered |
|---|---|---|---|
| Supply Shape: | Roll, Sheet, Special-shaped Punching | Availability: | M State HV≤60 |
| Surface Treatment: | According To Customer Requirements. | Surface Hardness: | (HV 0.3) 76/37 |
| Highlight: | Electroless Nickel Copper Strip Roll,Copper Strip Roll Electroplating |
||
Copper Strip Nickel-Plated Copper Strip Has Complete Specifications In Stock
Product Description
Nickel-plated copper strip has excellent surface color, conductivity, processability, ductility, weather resistance, corrosion resistance and weldability. It will not produce gas embrittlement effect at high temperature. It can be soldered and ultrasonically welded. The main component of the resistance alloy has good corrosion resistance, good welding performance and processing performance, and is widely used in electric heating elements in low-voltage electrical appliances such as thermal overload relays and low-voltage circuit breakers.
- Ni Plating: Electroless Nickel, Hybrid Electroless Nickel, Normal Electroplating
(Three types of craft products are available according to customer requirements)
- Width: Any width of 20~100mm can be produced. (customized production according to customer requirements)
- Thickness: 0.2T~0.5T (customer optional)
Other physical properties
The resistivity: (Ωm㎡/m) ≦0.024
Elongation: (%) 15～30
Tensile strength: (MPa) 150-170
Peel strength: (N/mm) ＞12
Surface hardness: (HV 0.3) 76/37
| Material grade | T2 | ||
| Material purity | Cu+Ag ≥99.9% | ||
| Physical properties | Conductivity ≥100% | Tensile strength 200-260MPa | Elongation rate≥42% |
| Plating thickness (single side)um | 1.5 , 2 , 3 | ||
| Product specification(mm) | Thickness 0.08-0.4 Tolerance ±0.01 | Width 1.5- 200 Tolerance ± 0.1 | |
| Availability | M state HV≤60 | ||
| Supply shape | Roll, sheet, special-shaped punching | ||
| 180°bending | ≥ 7次 | ||
| Electroplating form | Two or four sides | ||
| Performance | Has good surface color, electrical conductivity, plasticity, ductility, corrosion resistance and weldability. Soldering, ultrasonic welding and spot welding are available. | ||
| Purpose | It is used in electronic connectors, precision electronic plug-ins, power battery connecting pieces, tab negative poles, switch contactors, and the connection between lithium battery positive poles and PCB boards. | ||

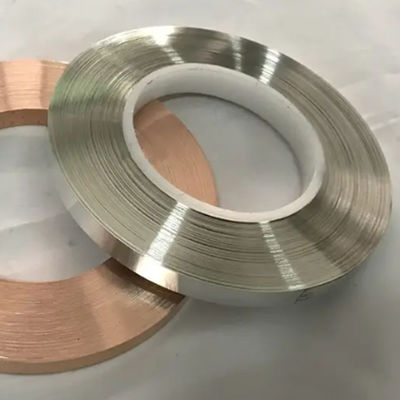

Product display
Application example
Connecting piece, tab, lead-out piece, cut-off piece in rechargeable battery pack, battery, electronic industry, laptop computer, mobile phone, cordless power tool, electric bicycle, electric moped, pager, MP3, digital camera and video recorder, Nickel-cadmium, nickel-hydrogen, nickel batteries, assembled batteries and instruments, telecommunications, electric vacuum, special bulbs, etc.
Advantages
1, good welding function
2, anti-electromagnetic interference
3, cheap price
Package
-Product packaging: Spool, plastic seal, and aluminum-plastic film seal packaging
- Outer packaging size: paper (L410mm*W410mm*H95mm)
- Product packaging inner diameter: 100mm and 200mm, or other inner diameters are optional.
FAQ
1.Are you trading or manufacturer ?
We are company,and we have our own factory
2.How long is your delivery time?
| Quantity(kilograms) | 1 - 500 | >500 |
| Est. Time(days) | 10 | To be negotiated |
3.Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you have another question, pls feel free to contact us
Our advantage
1. Perfect management system: We operate strictly in accordance with the quality management system.
2. Professional sales and after-sales service team: We have a number of sales specialists, 24 hours a day online service, can quickly solve customer questions and after-sales.
3. Reliable quality: from the procurement of raw materials, to the process inspection of product production and finished product inspection, to the inspection of packaging, all are strictly controlled, with a number of advanced testing equipment and instruments, such as temperature rise tester, conductivity tester , tensile testing machine, etc.
4. Timely delivery: We have many years of production experience, strictly control the cost of each process, have multiple automated production equipment, and have a stable production chain.
5. Intelligent workshop: It has intelligent mechanical operators and multiple precision operation platforms.
